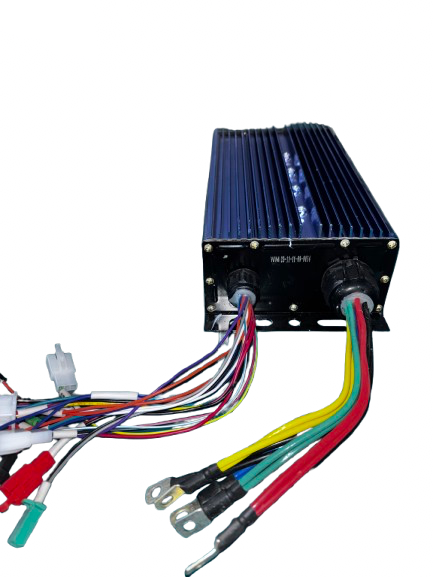

⚙️ 75A PMSM Controller for 1500W–2000W IPM Motors This 75A PMSM controller is built for high-performance electric vehicles demanding robust power, consistent torque, and ultra-smooth drive quality. Specially optimized for 1500W to 2000W Interior Permanent Magnet (IPM) motors, it uses advanced FOC (Field Oriented Control) for intelligent energy use and real-time torque delivery. ✅ Technical Specifications: Rated Current: 75 Amps Motor Compatibility: 1500W to 2000W IPM / PMSM motors Control Strategy: Vector-controlled FOC (sinusoidal drive) Voltage Range: 60V / 72V (customizable to 84V on request) Efficiency: >96% peak system efficiency Throttle Input: Smooth 3-wire/5-wire compatibility Torque Curve: Flat torque response across RPM band for gradient climbing Speed Modes: 3-level with Eco/Normal/Sport tuning options Braking System: Regenerative braking (programmable intensity) E-brake input & brake light output Reverse Gear: Built-in with soft switching Display Support: CAN/UART-based smart dashboard ready Motor Feedback: Hall sensors, sensorless FOC optional Housing: Die-cast aluminum, IP65 rated – water/dust/heat resistant Cooling: Passive cooling with extended fin design Protection Mechanisms: Overcurrent / short circuit Overtemperature with derating Phase loss & stall detection Battery undervoltage and surge protection Safe start & soft acceleration 🛠️ Features & Benefits: 💪 Delivers strong initial torque for cargo and gradient-heavy routes 🔇 Silent, ripple-free drive with sinusoidal wave output 🔋 Maximizes battery efficiency with intelligent energy use 🚚 Supports heavy-duty vehicles like loaders, vending EVs, and dual-battery systems 🔧 Easy integration with Indian e-rickshaw wiring standards 🧠 Upgrade-ready for BMS, IoT tracking, and diagnostic logging 🔋 Best choice for long-range, heavy-duty electric 3-wheelers needing smooth driveability and strong load capacity.
