Manufacturing test

🌀 1500W PMSM Motor (IPM Type) – High Torque, High EfficiencyThis 1500W Interior Permanent Magnet Synchronous Motor (IPM) is engineered for e-rickshaws and commercial EVs that demand more pulling power, smoother ride quality, and longer battery life. With high torque at low RPM and premium-grade construction, it’s the ideal upgrade from traditional BLDC motors.✅ Technical Specifications:Rated Power: 1500WVoltage: 60V / 72V compatibleMotor Type: PMSM / IPM (Interior Permanent Magnet Motor)Max Torque: 35–50 Nm (controller dependent)Efficiency: 92–95% with matched FOC controllerSpeed Range: Tunable for 25–55 km/hMount Type: Differential axle or mid-mount (custom options available)Cooling Method: Air-cooled, sealed enclosureProtection: IP54 / IP65 on requestSensors: Hall sensors built-in for precise motor controlConstruction:Pure copper windingsHigh-strength rare-earth magnetsLaminated core for reduced lossesNoise Level: Ultra-low, sinusoidal operation (controller dependent)🛠️ Features & Benefits:💪 Superior torque output – great for inclines and load-carrying🔋 Energy-efficient – get more kms per charge🔇 Whisper-quiet operation – ideal for passenger comfort🔧 Longer lifespan – fewer moving parts, no brushes🚛 Load-ready – suitable for passenger, delivery, and vending applications🇮🇳 Designed for Indian roads, weather, and driving patterns🚀 Pair with our 65A or 75A PMSM controller for maximum performance, smooth torque curve, and regenerative braking support.
1500W PMSM/Sine wave Motor Premium
VIEW DETAILS
⚙️ PMSM Controller (1250W / 60A) – For IPM MotorsThis 60A PMSM controller is precisely tuned for 1250W Interior Permanent Magnet (IPM) motors, offering smart torque delivery, ultra-smooth ride feel, and superior battery efficiency. Ideal for high-performance e-rickshaws and utility EVs that demand stability, safety, and endurance in everyday operations.✅ Technical Specifications:Rated Current: 60 AmpsMotor Power: 1250W PMSM (IPM)Operating Voltage: 48V / 60V (72V optional)Control Algorithm: FOC (Field Oriented Control) with vector torque controlMotor Feedback: Hall sensor & sensorless compatibleThrottle: 3-wire / 5-wire analog throttle inputSpeed Modes: 3-level speed selection + reverseBraking Support:Regenerative braking (programmable strength)E-brake input & brake cut-off supportReverse Mode: Integrated soft reverse with buzzer optionDisplay Interface: UART / CAN support for digital dashboardsCooling: Passive air-cooled with large aluminum heat sinkEnclosure: Die-cast aluminum, IP65 waterproof/dustproofProtections:Overcurrent & short circuit protectionBattery undervoltage & surge protectionStall detectionController overheat auto deratingSafe start logic🛠️ Features & Benefits:⚡ High-efficiency FOC technology = longer range per charge🔇 Silent and ripple-free acceleration🚀 Smooth hill starts and torque-rich low-speed performance🔋 Battery-friendly design with energy recovery via regen braking🧠 Diagnostics-ready for future IoT and BMS upgrades🇮🇳 Built for Indian urban and semi-urban driving environments🧭 Recommended for 4-passenger e-rickshaws, light cargo carriers, and smart EVs needing refined drive control and power optimization.
1250W PMSM/Sine wave Motor Premium
VIEW DETAILS
⚙️ 75A PMSM Controller for 1500W–2000W IPM MotorsThis 75A PMSM controller is built for high-performance electric vehicles demanding robust power, consistent torque, and ultra-smooth drive quality. Specially optimized for 1500W to 2000W Interior Permanent Magnet (IPM) motors, it uses advanced FOC (Field Oriented Control) for intelligent energy use and real-time torque delivery.✅ Technical Specifications:Rated Current: 75 AmpsMotor Compatibility: 1500W to 2000W IPM / PMSM motorsControl Strategy: Vector-controlled FOC (sinusoidal drive)Voltage Range: 60V / 72V (customizable to 84V on request)Efficiency: >96% peak system efficiencyThrottle Input: Smooth 3-wire/5-wire compatibilityTorque Curve: Flat torque response across RPM band for gradient climbingSpeed Modes: 3-level with Eco/Normal/Sport tuning optionsBraking System:Regenerative braking (programmable intensity)E-brake input & brake light outputReverse Gear: Built-in with soft switchingDisplay Support: CAN/UART-based smart dashboard readyMotor Feedback: Hall sensors, sensorless FOC optionalHousing: Die-cast aluminum, IP65 rated – water/dust/heat resistantCooling: Passive cooling with extended fin designProtection Mechanisms:Overcurrent / short circuitOvertemperature with deratingPhase loss & stall detectionBattery undervoltage and surge protectionSafe start & soft acceleration🛠️ Features & Benefits:💪 Delivers strong initial torque for cargo and gradient-heavy routes🔇 Silent, ripple-free drive with sinusoidal wave output🔋 Maximizes battery efficiency with intelligent energy use🚚 Supports heavy-duty vehicles like loaders, vending EVs, and dual-battery systems🔧 Easy integration with Indian e-rickshaw wiring standards🧠 Upgrade-ready for BMS, IoT tracking, and diagnostic logging🔋 Best choice for long-range, heavy-duty electric 3-wheelers needing smooth driveability and strong load capacity.
PMSM/Sine Wave Motor Controller - 75A
VIEW DETAILS

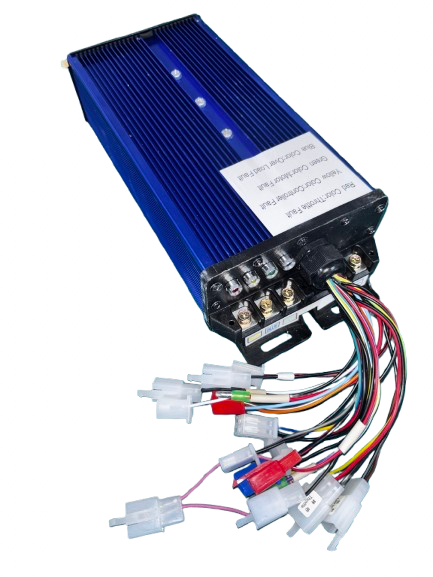

⚙️ 65A PMSM Controller for 1250W IPM MotorsEngineered for high-performance 1250W Interior Permanent Magnet (IPM) motors, this 65A PMSM controller delivers advanced torque control, energy efficiency, and ultra-smooth acceleration. It’s the ideal choice for premium e-rickshaws and heavy-duty electric loaders that require precision, silence, and power in one compact unit.✅ Technical Specifications:Rated Current: 65 AmpsMotor Type: PMSM / IPM (Interior Permanent Magnet Motor)Motor Power: 1250WControl Method: FOC (Field Oriented Control) / Vector ControlOperating Voltage: 48V / 60V (72V optional)Max Efficiency: 95%+ with optimized tuningThrottle Control: Linear response with smart torque mappingSpeed Modes: 3-level speed selector, customizable via programmingBrake Support:Regenerative brakingE-brake cutoffReverse Mode: Integrated with soft switchingMotor Feedback: Compatible with Hall sensor and sensorless operationDisplay Integration: Supports CAN/UART smart displays (optional)Casing: Waterproof (IP65), anodized aluminum heat sink bodyCooling: Advanced thermal design for passive cooling under continuous loadSafety & Protection:Overcurrent & overvoltage protectionUndervoltage cutoffPhase loss detectionStall protectionTemperature auto-derating🛠️ Features & Benefits:⚡ High efficiency – less battery drain, more km per charge🎯 Precise torque control – great for both passenger and cargo models🔇 Silent operation – smooth sinusoidal waveform output📈 Better gradient performance – climbs hills and inclines effortlessly🔒 Smart safety systems – extends motor and controller life🇮🇳 Optimized for Indian road conditions and usage cycles🚀 Recommended for premium e-rickshaws, commercial loaders, or fleet operators looking for smoother, more efficient, and quieter rides.
PMSM/Sine Wave Motor Controller - 65A
VIEW DETAILS
🔋 60A BLDC Motor Controller for 1200W E-Rickshaw MotorsOur 60A motor controller is engineered to deliver peak performance for 1200W BLDC motors, providing a smooth, responsive ride and reliable power delivery even under heavy loads. Designed and manufactured in India, it’s tailored for rugged Indian road and weather conditions.✅ Technical Specifications:Rated Current: 60 AmpsRated Motor Power: 1200WOperating Voltage: 48V / 60V compatibleMOSFET Count: High-efficiency MOSFETs for low heat loss and durabilityThrottle Type: Compatible with 3-wire and 5-wire throttlesSpeed Modes: Support for 3-speed switchBrake Type: Regenerative braking support (optional)Reverse Function: Built-in reverse gear switchingAuto Cut-off: Battery low-voltage protection and motor protectionController Casing: Aluminum alloy with enhanced heat dissipationProtection Features:Overheat protectionOverload/overcurrent protectionShort-circuit protectionAnti-spark design for safe battery connection🛠️ Benefits:Strong low-end torque for better load pickupEnhanced thermal management — performs even in extreme heatBuilt-in diagnostics and protection systems to extend motor lifePlug-and-play compatible with most Indian e-rickshaw wiring harnessesDesigned for low maintenance and long service life⚙️ Ideal for high-performance e-rickshaws operating in hilly terrain, heavy cargo loads, or extended duty cycles.
BLDC Motor Controller - 60A

INR 3000

VIEW DETAILS
55A BLDC Motor Controller (1000W/1100W Compatible)Designed for high-performance e-rickshaws, this 55A controller ensures smooth throttle response, efficient power delivery, and optimal motor protection. Compatible with 1000W and 1100W BLDC motors, it offers robust performance under varying load conditions and is built to withstand tough Indian road environments.Features:Max Current: 55 AmpsVoltage: 48V/60V compatible (customizable)Regenerative braking supportOverheat & overload protectionHigh-grade MOSFETs for reliabilityCompact, weather-resistant casing🔧 Ideal for daily use e-rickshaws needing consistent torque and reliable control.
BLDC Motor Controller - 55A
VIEW DETAILS

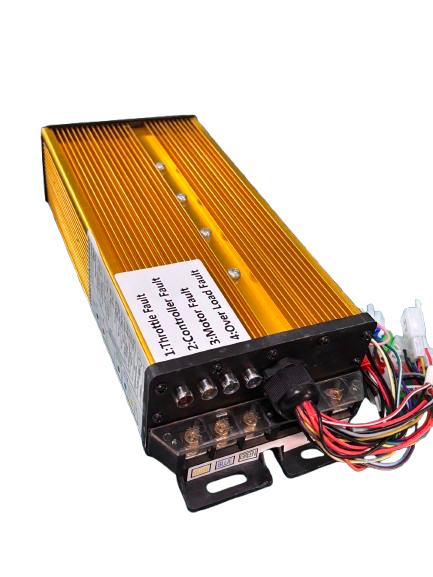

50A BLDC Motor Controller – Economical & Efficient for 1000W E-Rickshaw MotorsThe 50A BLDC Controller is a trusted, value-driven solution for 1000W e-rickshaw motors, especially in the secondary and replacement market. Designed to deliver reliable performance at an affordable cost, it’s a smart choice for budget-conscious operators without compromising on basic functionality and safety.Key Features:Optimized for 1000W BLDC Motors: Ideal for standard passenger e-rickshaws and retrofit applications in the secondary market.50A Peak Current Output: Provides sufficient torque and acceleration for daily city and semi-urban commuting with moderate loads.Cost-Effective Design: Focused on essential performance and protection features to keep the controller reliable and budget-friendly.Basic Protections Included:Overcurrent protectionUndervoltage protectionThermal cut-off to prevent overheatingBest Suited For:Secondary market vehiclesUsed/refurbished e-rickshawsFleet operators seeking economical replacement partsVehicles with basic 1000W motor setupsBenefits:Affordable Performance: Balanced power and price for operators working in cost-sensitive markets.Easy Installation: Compatible with most 1000W motor and throttle configurations.Dependable Operation: Proven performance across thousands of units in real-world Indian road conditions.Recommended Usage:Light-to-medium load operationFlat terrain, urban driving conditionsOccasional use or vehicles with shorter daily travel cycles
BLDC Motor Controller - 50A

INR 2500

VIEW DETAILS
BLDC Motor Controller - 75A

INR 5000

VIEW DETAILS
BLDC Motor Controller - 65A

INR 3200

VIEW DETAILS

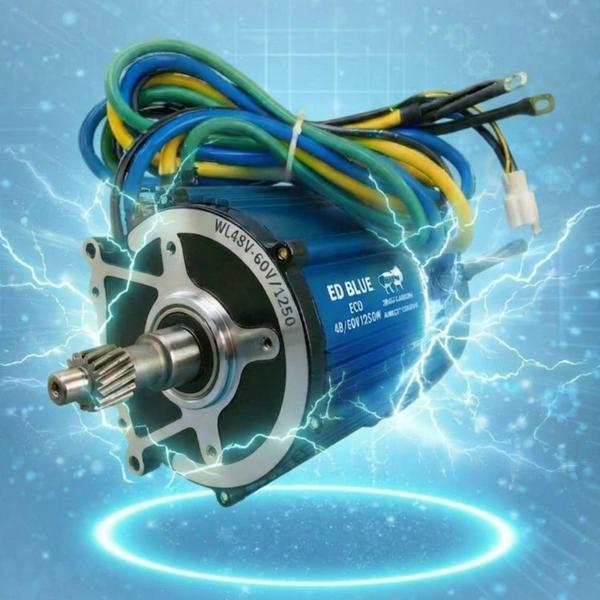

1500W BLDC Motor Premium

INR 7200

VIEW DETAILS

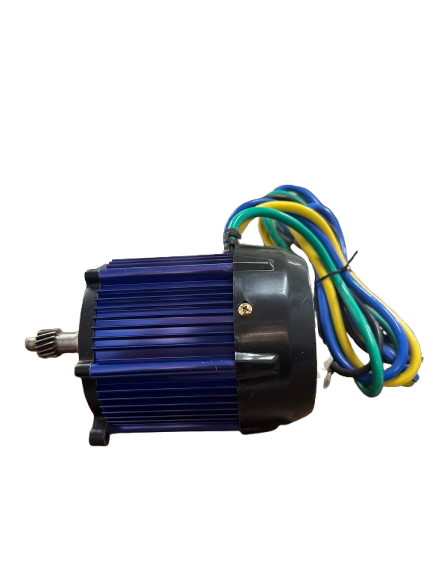

E Rickshaw motor with affordable price and bestPerformance in its segment.With 1year warranty.
1250W BLDC Motor Premium

INR 6000

VIEW DETAILS

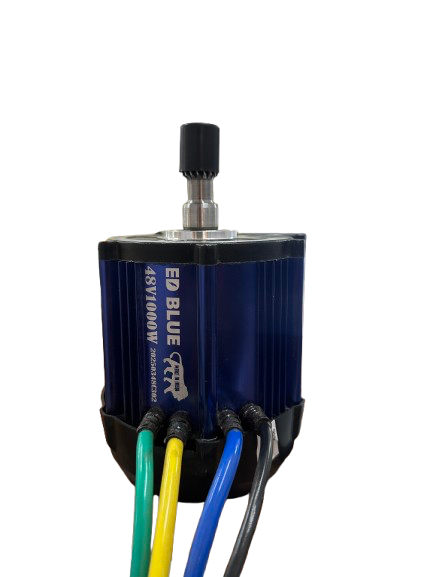

1000W BLDC Motor Premium

INR 4500

VIEW DETAILS
